  • Model SR-FSF-40II/150II

    Application:

    The machine is designed and manufactured specially for powdery and super fine powdery products. Driven by servo motor, filling range can be adjusted autuomatically through setting computer parameters. The processes of bag making, measuring, dosing, sealing, cutting, counting and hot pressing codes can be done automatically. Packing materials: heat-seal lamination, such as PET/VMPET/PE, PET/PE, Nylon, etc.


    Feature:

    1. All stainless steel cover meets GMP standard

    2. Servo motor driving and PLC control.

    3. Bag size and filling range are adjustable.

    4. The high sealing pressure guarantees the sealing area tight and neat, due to rotary sealing method that make our machine    60%faster than intermittent machines.

    5. The advantages of professional auger are listed as follows:

    - It is incised from solid stainless steel, accurate measuring, 50% longer life cycle.

    - Unique super-length auger system design achieves dustproof function, meanwhile working with rotary strong sealing method, ensures user get perfect packaging and longer expiry date.

    6. The screw feeding part is able to achieve multi-angle adjustment ( left, right, up, and down) to adapt defferent specialty of powder product, and guarantee perfect packing effect.

  • Model SR-FSF-300/1500

    Application:

    The machine is suitable for packing all kinds of fine powder such as flour, starch, milk powder, etc. The process of bag making, measuring, filling, sealing, cutting,counting,trace mark, printing and air filling can be done automatically.

    Feature:

    1. There are horizontal, slant, and straight auger fillers to adapt to different types of powder products.

    2. Adopt smart photocell for automatic tracking, and build-up which guarantees the pattern on the packing material complete and beautiful.

    3. Cooling system guarantees no product sticks during packing process.

    4. Sealing system adopts German bearings for strong wear resistance and low maintenance.

    5. Unique coating treatment on machine internal parts is anti-corrosion and anti-oxidation, expecially good for tropical area.

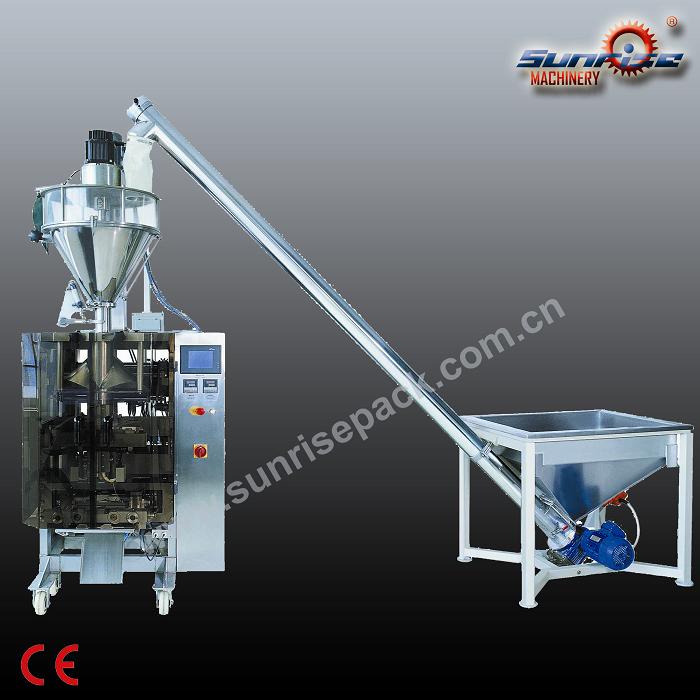

  • Model SR-FS-F500 / F620 / F800

    Application:

    This machine adopt screw conveying material, and the storage can be vibrated . It is suitable for conveying various powder and little pellets.

    Feature:

    Main Packing machine

    1. Imported PLC computer control system with human-machine interface;

    2. Minimize the loss with complete automatic warn protection function;
    3. Supported with metric device, the machine will automatically complete all

    packaging processes from measuring, feeding, filling, bag making.

    Model

     Type 500

    Type 620

    Type 800

    Film width

    180-550mm

    220-600mm

    340-800mm

    Bag width

    80-240mm

    100-300mm

    160-385mm

    Bag lengh

    50-300mm

    50-380mm

    100-480mm

    Capacity

    15-60bags/min

    15-60bags/min

    10-30bags/min

    Air consumption:

    0.36m3/Min,0.6MPa

    0.4m3/Min,0.6MPa

    0.7m3/Min,0.6MPa

    Power:

    220V, 50HZ, 3KW

    220V, 50HZ, 4.5KW

    220V, 50HZ, 4.5KW

    Weight:

    550Kg

    680Kg

    980Kg

    Dimension(L*W*H)

    1550*1160*1480mm

    1600*1260*1680mm

    1600*1500*2050mm



    Screw metering machine

    The machine applies whirl threaded rod feeding, servo coding and micro-computer control technology.

    Items

    Content

    Matering system

    Screw rotary filling

    Packaging weight

    10-2000g (alter screw accessory)

    Packaging precision

    =100g accuracy=0.5-1g

    100-1000g accuracy=0.5%-1g

    >1000g accuracy:0.25%-0.5%

    Packaging speed

    10-50 bags/min

    voltage

    Three phase 380v ( AC 220v) 50-60HZ

    Machine power

    1.5kw

    Machine weight

    80kg

    Volume

    50L




    Screw feeding conveyor

    This machine adopt screw conveying material, and the storage can be vibrated. it is suitable for conveying various powder and little pellets.

    Items

    Content

    Lifting height

    Screw rotary filling

    Lifting volume

    10-2000g (alter screw accessory)

    Specification

    10-50 bags/min

    Material

    Three phase 380v (AC 220v) 50-60HZ




    Finished products conveyer

    The machine can send the packed finished bag to after-package detecting device or packing platform.

    Items

    Content

    Feeding speed

    30m/minute

    Dimension(LxWxH)

    2110mmx340mmx500mm

    Voltage

    220V/45W


  • Model SR-FSF-40VI

    Application:

    The machine is designed and manufactured specially for powery and super fine powery products, the processes of bag making, measuring, filling, sealing, cutting and hot pressing codes can be done automactically. Increase market share by offering a  better quality product than your competitors.

    Feature:

    1.Full servo motor with PLC colour sreeen controling system.

    2.Auger slant angel is adjustable, which guarantees bag packing neat and straight.

    3.New fully-closed feeding structure, which adopts the movable auger feeding system, makes the measurement more accutate, and no leakage when machine running.

    4.Movable horizontal sealing syetem, to ensure machine working stable and steady.

    5.Packing speed can be increased while monitoring the saeling quality.

  • Model SR-FSF-900T/SR-FSF-900

    Application:

    This machine is used for mass producting of pharmaceutical, food, and health care products. Possibiliyies include herbal powder, panax notoginseng powder, protein powder, milk powder and tea powder, etc.

    Feature:

    1. Up to 12 lines, low maintenance.

    2.Each feeding line equipped with separate servo motor, to make certain accurate dosing.

    3.Panasonic PLC provides fast and consistent operation.

    4.. Equipped with automatic packaging material tracking deviation correction device, control for minimal film wasting .

    5. Patented screw feeding device makes air exhausting and nitrogen gas flushing possible, extending the shelf life of powder.

    6. Unique front/rback sealing mold design insulates the filling material from hot sealing mold, which assures filling material free flowing even at high sealing temperature.

    7. Movable horizontal sealing design with patented balance technique ensure tight and neat of sachets.

    8. Unique feeder and mixer 2 in 1 design makes sure uniformity of powder ,especially for food, pharmacy and health care industries.

    9. 3D easy tear design guarantee easier tear.


  • Model SR-FSF-40VII

    Application:

    This machine is suitable for medical, health care product, food industrial powdery materials, such as powder, protein powder, coffee etc.

    Feature:

    1.This machine adopt full servo motor control system, with accurate action, fast speed, no need maintenance.

    2.This machine adopt the intermittent sealing system, this special sealing system make the pattern more clearly, with good airtight, and avoid the bag leakage and wrinkle.

    3.This machine adopt the movable feeding system which makes the measuring adjustment more convenient. Servo motor control straight auger device can make sure there is no feed leakage when machine running, the sealing margin is clean and with good airtight. When cleaning the auger, you no need to romove the bag former, it is more convenient and simple.

    4.External cutter adjusting device, you can adjust the cutter position with no machine stop, more convenient and safety.

    5.Double cutter system can achieve N bags a cut, which reduce the cartoning labor intensity and ensure the cartoning numbers accuracy.


  • Model SR-FSF-300T

    Application:

    This machine is suitable to pack pharmaceutical, food and health care products, such as herbal powder, protein powder, milk powder, tea powder, etc.The machine is servo motor driven which makes product change easy and fast by enabling pre-set of operation condition such as sachet length, filling weight, filling timing, etc. on touch screen panel.


    Feature:

    1.Round corner comfortable design, skin protection of users Customized all types of bag shape based on customer’s special requirement.

    2.Unique front/back sealing mold design is anti edge offset.

    3.Air driving sealing system makes machine run steady and with precise packets.

    4.Servo motor with PLC touch screen controller, intuitive, easily understandable operation, convenient user interface.

    5. Movable horizontal sealing design works with  patented balance technique ensures tight and neat packets.

    6.3D easy tear guarantee much easier opening.

    7.Special designed cooling system guarantees no product sticks during packing process.

    8.Auger slant angel is adjustable, which guarantees bag packing neat and straight.
