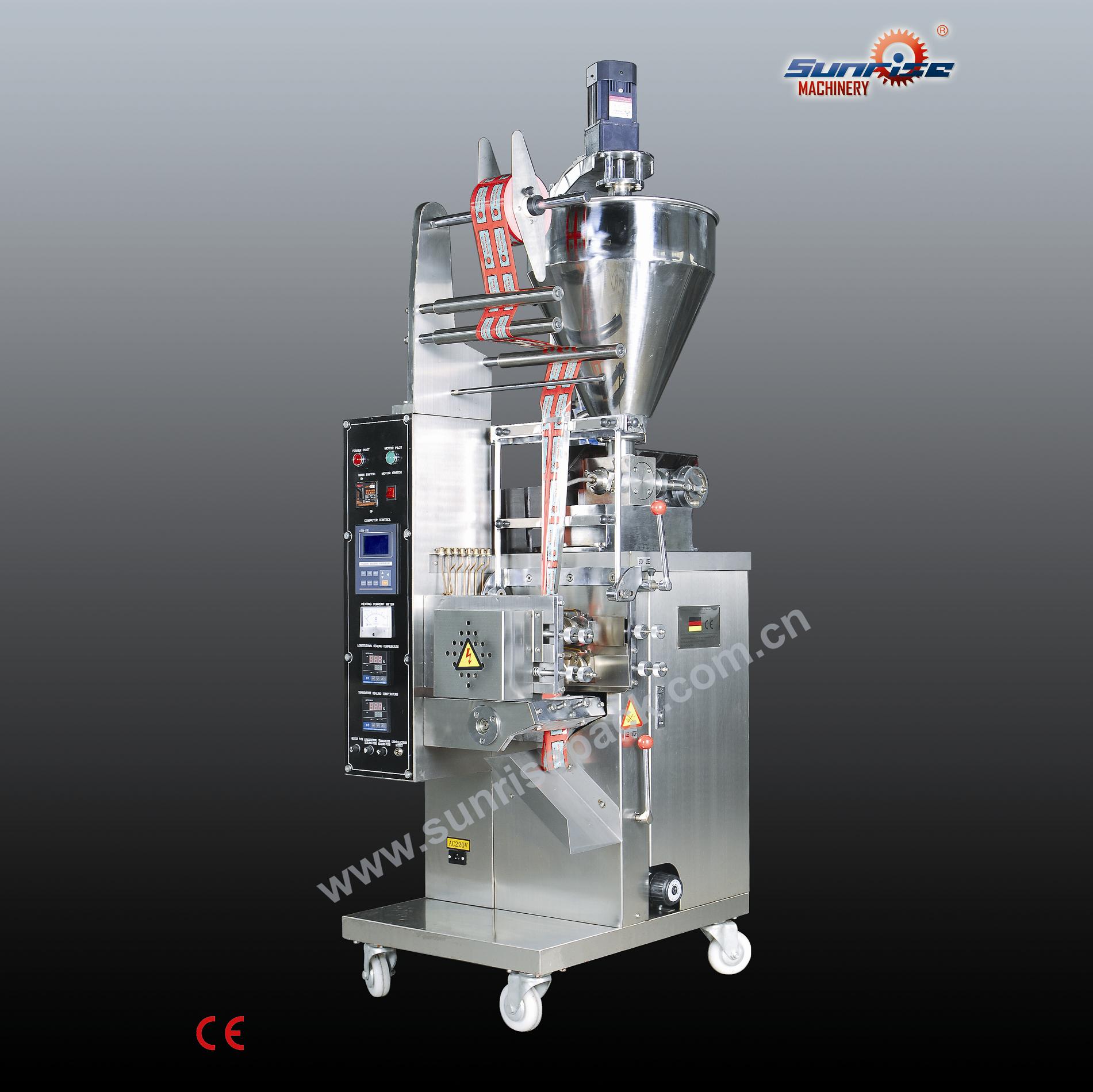

Model SR-FSJ-40II/150II

Application

It is suitable for automatically packing of viscous products with free-flowing such as tobacco sauce, lotion, noodle jam, edible oil, meat jam and brothThe integrated processes of bag making, measuring, filling, sealing, cutting, counting and hot pressing codes can be done automatically.

Feature

1. Adopt variable frequendcy motor +PLC colour touch screen controlling system. Enable easy operation and achieves human-computer interaction.

2. Automatic adjustment of bag size and filling range, equipped with unique anti-leakage sealing device, extend expiry date.

3. With double jacket hopper, machine can keep filling temperature of liquid product as 40, suitable for hot filling product.

4. Equipped with mixer inside the hopper, to achieve anti-sedimentation, help filling evenly and smoothly.

5. Meet GMP standard. For to different product nature, machine can be equipped with different types of pump, rotary pump, liquid pump, gearpump, piston pump.

6. Unique filling suction device, avoid leakage, easy to clean.

7. For high temperature and high humidity area, do chemical coating treatment in the machine, which can effentively avoid the inner parts of machine rusting and increase the wear resistance and life span of machine.

8. Packing effect can be enhanced while monitoring the sealing method (hermetic line works with crossway sealing).

Main technical parameters

FSJ-40II

Bag size

(L)55-110mm  (W)30-80mm

Capacity*

25-590bags/min

Filling range

5-40ml

Weight

350kg

Dimension(LxWxH)

600mmx700mmx1780mm

Power

220V,50HZ,1.3KW

Ideal Thickness of Film

65μm-75μm



FSJ-150II

Bag size

(L)70-150mm  (W)70-115mm

Capacity*

35-60 bags/min

Filling range

30-150ml

Weight

450kg

Dimension(LxWxH)

700mmx800mmx1900mm

Power

220V,50HZ,1.9KW

Ideal Thickness of Film

65μm-75μm



*Depending on product property and filling volume
