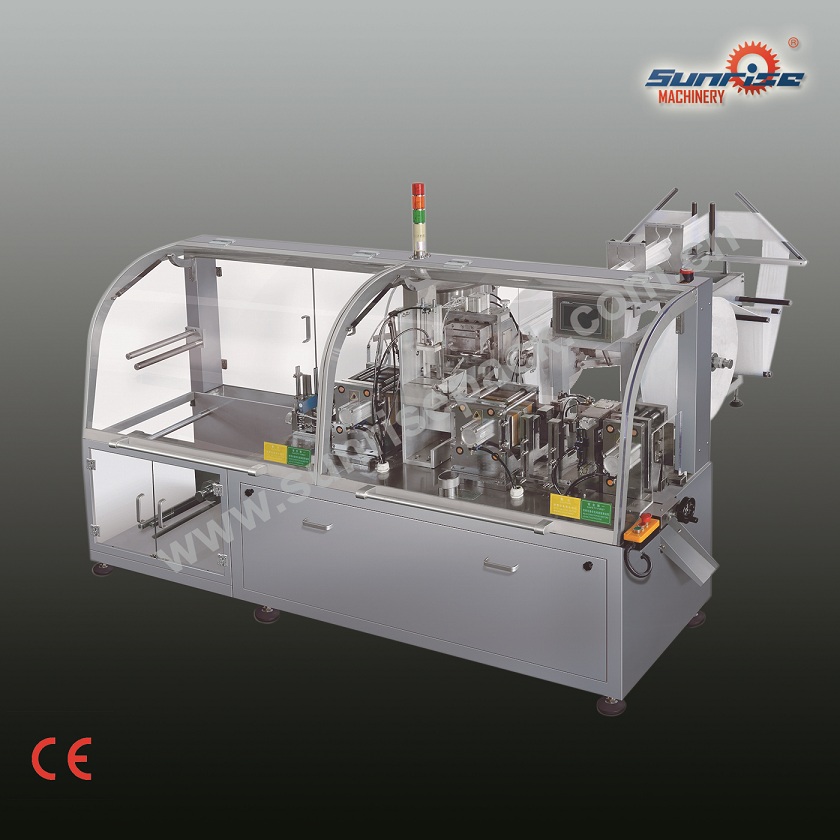

Model SR-ZJ250
应用
此机器适用于餐饮,医药,卫生等领域, 包括药膏,消毒棉纸,消毒巾,厕所用纸和芳香纸巾等。
产品特点
1. 物料接触部分为SS304 不锈钢, 其他为烤漆。
2. 配备松下PLC
3.双变频控制,袋长分切灵活,为客户节约时间和成本。
4.电子眼跟标,确保分切准确。
5.可选配防切料装置,以防止包装时切到物料。
6.根据不同物料的特性, 可选配上走纸或下走纸机器。
7. 故障自诊功能, 故障显示一目了然。
主要技术参数
制袋形状 Bag shape | 四边封 |
制袋尺寸 Single bag size
| 长 40〜120mm 宽 40〜110mm Length 40〜125mm, Width 40〜110mm (按要求设计大小:最大袋宽 220mm. (Special design. Max.Width:220 mm) |
湿巾展开尺寸 Wet tissue unfolded size | 长 40~280mm,宽 20~280mm L40~280mm, W 20~280mm |
湿巾折经后尺寸 Wet tissue folded size
| 视包装大小而定 According to the pouch size
|
包装膜宽度 Film width | 膜宽 80mm〜250mm Film width 80mm〜250mm |
膜卷和纸卷的内芯尺寸 Inside film roller and tissue roller diameter | Φ 70-75mm
|
折叠方式 Folded type | 横向 10 折、水平 4 折 Max 10 folding vertical, and 4 folding horizontal |
生产速度 Packaging speed
| 60-160 包/分钟(根据包装材料和大小决定) 60-160bags/min(according to the size and component of wet tissue) |
包装材料 Packing material | PE/OPP,PE/PET,纸膜 镀铝膜等复合膜 PE/OPP, PE/PET, paper film,aluminum foil film, etc. compound film |
湿巾材料 Wet tissue material | 30-80g/㎡无纺布、无尘纸、湿巾、水刺无纺布 30-80g/㎡ non-woven, air-laid paper, tissue,spun lace Wet tissue material non-woven fabric etc |
电源电压 Powder supply | 220V 50Hz 2.25kw
|
加液范围 Liquid adding range | 0〜10ml (加液精度 adding accuracy is 0.01ml)
|
工作气压 Work pressure | 0.6-1.0Mpa 耗气量 air compression≥0.8m3/min (w-1.0/10 air compression machine is needed) |
整机重量 Net Weight | 1000kg |
外形尺寸 Dimension(L*W*H ) | 2800*2800*1800 mm |
上述参数可根据产品特性和计量要求发生变化
