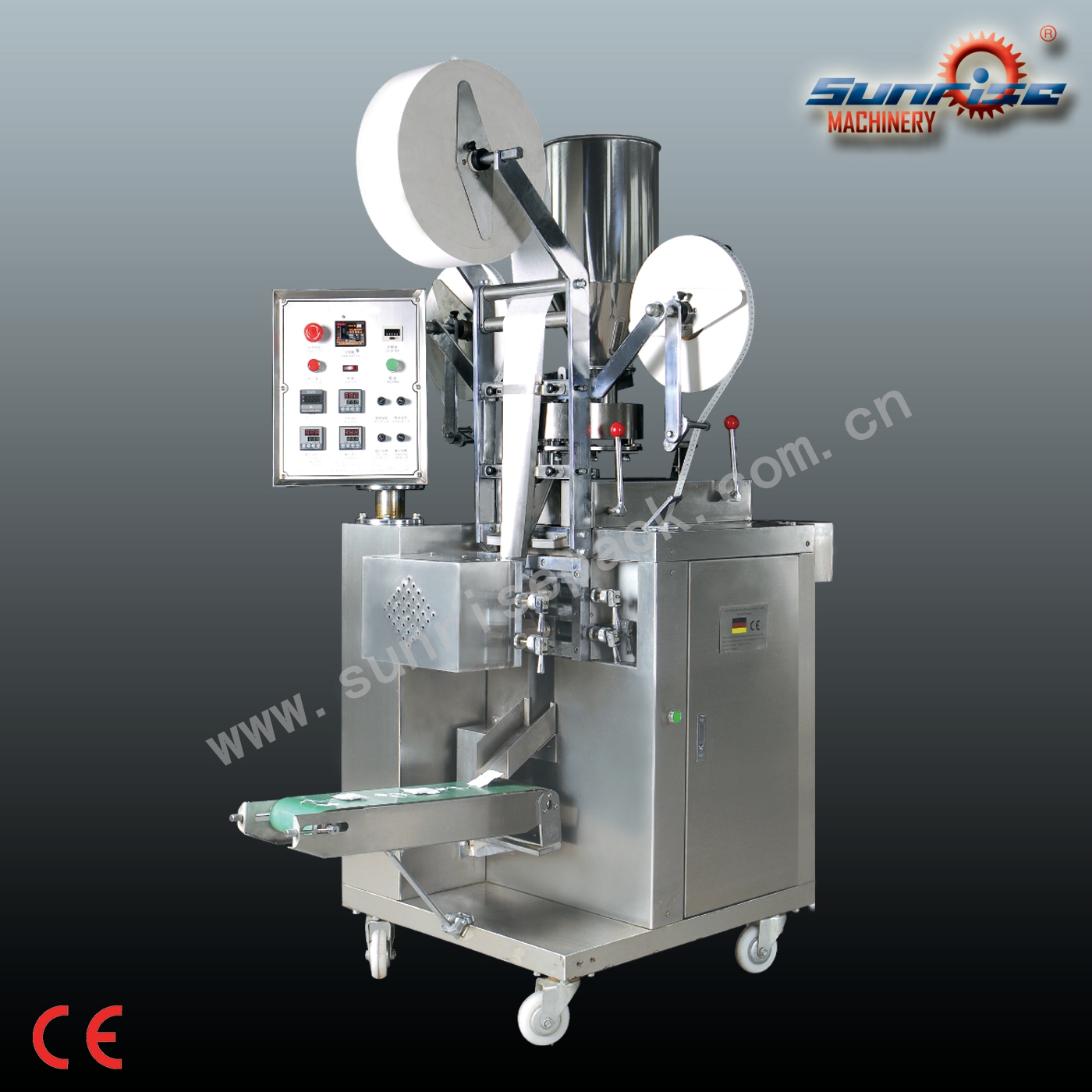

  • Model SR-FSCH-10A

    Application:

    It is suitable for automatical packaging of steeping products such as fragmental tea medical tea, coffee…

    Feature:

    The packaging pouches with drawing line and tag. The process of bag making, measuring, filling, sealing,

    cutting and counting can be done automatically

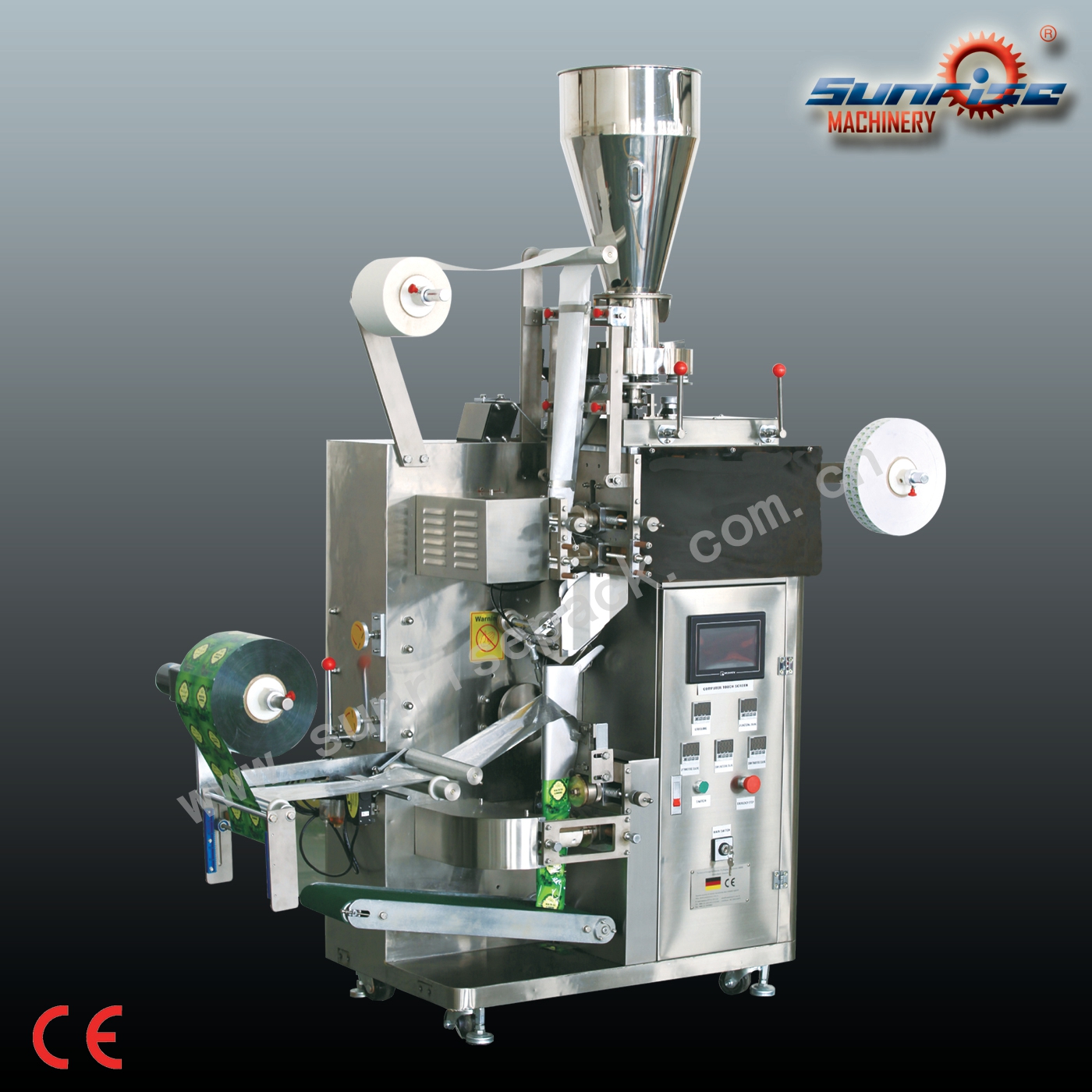

  • Model SR-FSCH-10B

    Application:

    FSCH-10B Tea Bag Packing Machine is a kind of machine

    which is used for packing tea seeds,

    medical, health-care and tea industries granular shaped ingredients.

    All of these items could be packed with both inner and outer envelops,

    and with thread and tag at the same time.

    Feature:

    The processes of bag making measuring, filling, sealing, cutting,

    counting and hot pressing code can be done automatically.

    Handling thread and tag would be a specific point of this machine,

    which would be a good convenience for customers while drinking tea.

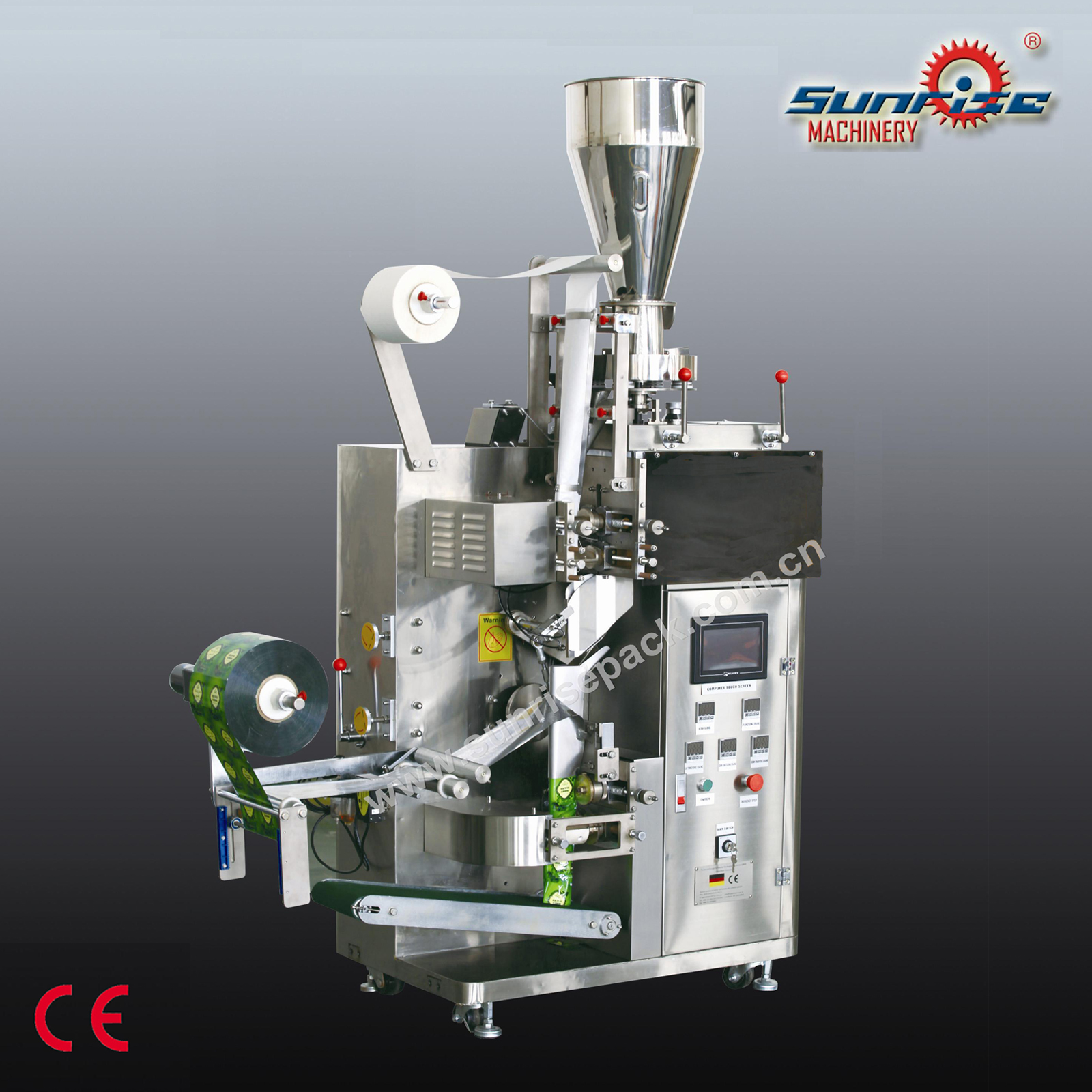

  • Model SR-FSCH-10C

    Application:

    DXDCH-10C Tea-Bag Packing Machine is a kind of new

    multi-function machine with totally automatic filling for both inner

    and outer bags at one time,

    it is suitable for automatical packaging of steeping products,

    such as fragmental tea, medical tea, coffee. Etc.

    Outer envelope is made from heatable lamination packing material

    that has the function for fresh protection, damp proof,

    and also avoiding volatile smelling ,

    which make the material an ideal choice for packaging of Chinese medical pills,

    healthcare tea and packed tea as well.

    Feature:

    1. stainless steel cover meets GMP standard


    2. computer controlled outer envelop is a patent product first created in the country,  adopt advanced CPU control system and also with wide user-friendly LCD screen.


    3.Packing materials: pet/pe, pe/vmpet/pe, pet/cpp/tea leaf filter paper.

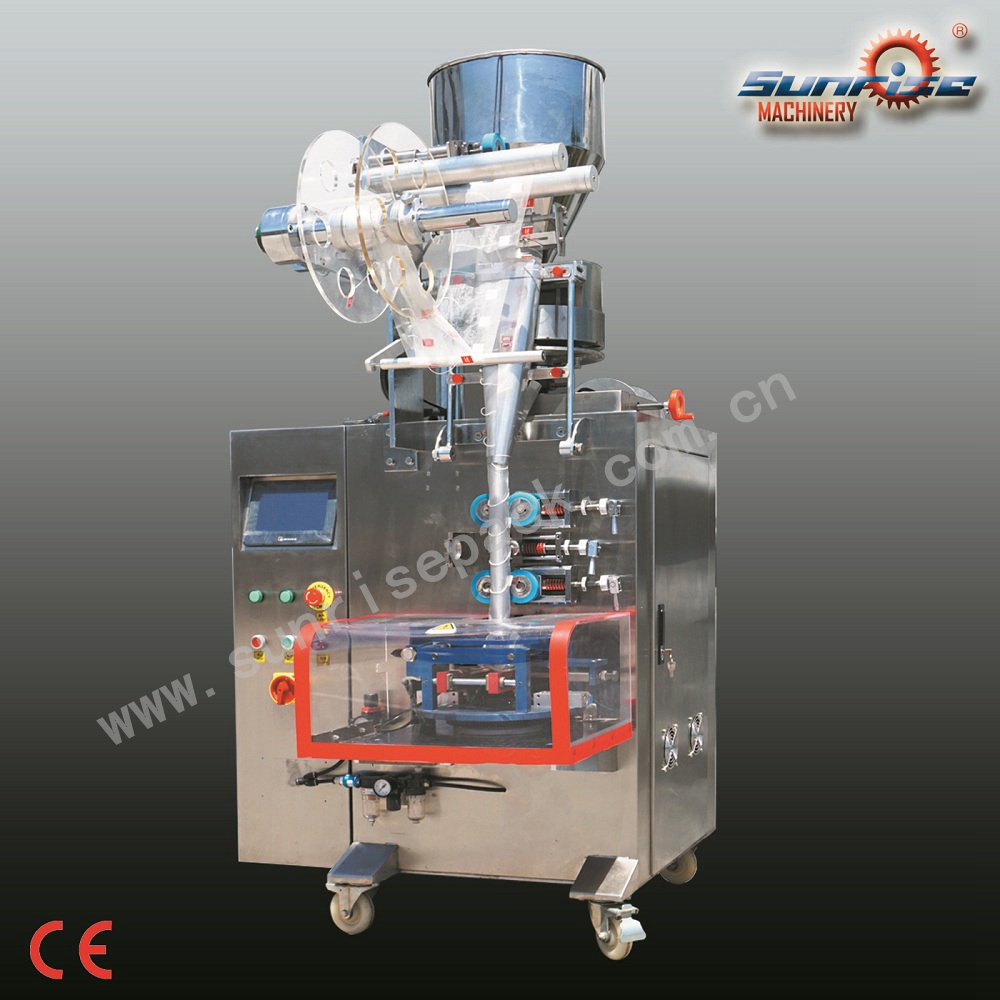

  • Model SR-FSCH-10D

    Application:

    This machine is suitable for health-care tea, herbal tea, fruit tea, and other granular materials. It adopts food grade non-woven nylon material which is has good water permeability and perceptivity, achieves a beautiful and harmonious vision. As the advantage tea packing machine, it can present different tea-drink experiences and visual effects.


    Feature:

    1. Adopt servo motors +PLC and color touch screen control system, easy operation.


    2. The most advanced and safest tea packing adopts special ultrasonic sealing method.


    3. Easily change between triangle bag and square bag.


    4. Automatically attached Thread & Tag.


    5. Various options for filling range and bag size.


    6. Optional highly efficient volumetric feeder or combination scale type feeder which is controlled by color touch screen.


    7. Ultrasonic sealer & cutter operated via servo motors to ensure stable sealing of filter material/thread/tag.


    8. Multi-bag packing into one envelope and single bag packing into one envelope are options.


    9. Able to be connected with boxing machine and cellophane overwrapping machine as a line.

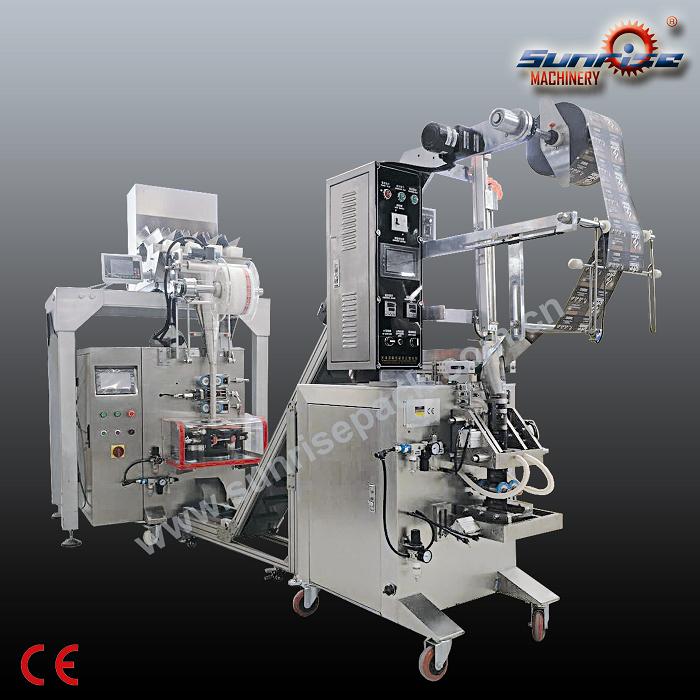

  • Tea Bag Packing Line

    Application:

    Considered one of the most advanced, highest speed and large of productivity machines available

    in the market today. It produces pyramid type as well as cuboid single chamber type tea bag with

    thread and tag at a speed of 50 bags per minute.

    The machine is equipped with servo motors operating ultrasonic sealers and seal cutters which

    ensure stable product quality and high productivity. All procedures for processing the bag

    (shaping,  dosing, labeling and counting) are performed automatically.

    Feature:

    1.  Thread & Tag attached automatically.

    2.  Various options for filling rang and bag size enable the client to implement variety of options

    3. Highly efficient volumetric feeder or multi-head electric scale type feeder are available upon choice.

    These features are controlled by touch panel

    4.  Ultrasonic sealer 8 cutter operated via servo motors to ensure stable sealing of filter material /thread/tag.
