Model SR-FSJ/Y-300T
Application
This machine is widely used for packing sauce or liquid product in food, health-care, and pharmaceutical product industries, such as chocolate paste, ketchup, honey, fruit juice, syrup, etc. also used for packing daily chemicals, such as hand sanitizer gel, shampoo etc.
It can realize automatic measuring, bag forming, filling,sealing, cutting, counting functions, and meet customer's personalized packaging requirements such as hot filling, CIP cleaning, etc.

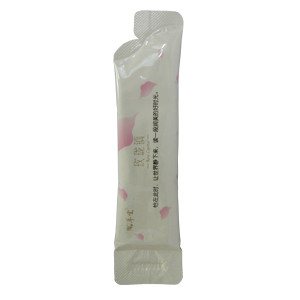

It's flexible to change among various exquisite bag shapes, such as bottle bag, round corners bag, Korean dotted line, etc. It aims at rapidly gaining market share for new product with pretty low cost.
Feature
1. Panasonic PLC with touch screen control system, intelligent operation, quick and convenient to change production parameters, such as filling range, packing speed, etc.
2. Professional gear pump (Servo motor-controlled), U-bar pump (Servo motor-controlled), Hibar pump, assure accurate and stable filling for all kinds of liquid and sauce product, convenient to change filling range.
3. Lock design mold forming can realize two procedures at the same time: bag forming and vertical sealing, it can avoid film deviation for beautiful bag.
4. Adopt double jacket hopper as optional according to customer's requirement, realize hot filling, the maximum filling temperature can reach 95℃.
5. Equipped with double easy opening devices, unique easy tear notch on the vertical sealing works together with easy tear on the horizontal sealing to realize real easy opening for each bag.
6. Two air-cooling devices can be found under vertical sealing and horizontal sealing respectively, they are used to quickly cool down the hot sealing seams to guarantee quick cutting without burrs.
7. Mold cutter made of imported Japanese steel can provide exquisite shapes, neat and beautiful cutting without burrs; long life-span, no need to change under normal conditions in 5 years.
Main technical parameters
Maximum Bag Size | L:180 mm W:50 mm |
Capacity | 30-50 Bags/Min |
Maximum Filling Range | 40 ml |
Power | 220 V, 50 HZ, 3.5 KW |
Weight | 350 Kgs |
Dimension(L*W*H) | 810*1066*2622 mm |
Packaging Material | Heat-sealable Lamination |
Depending on product property and filling volume
