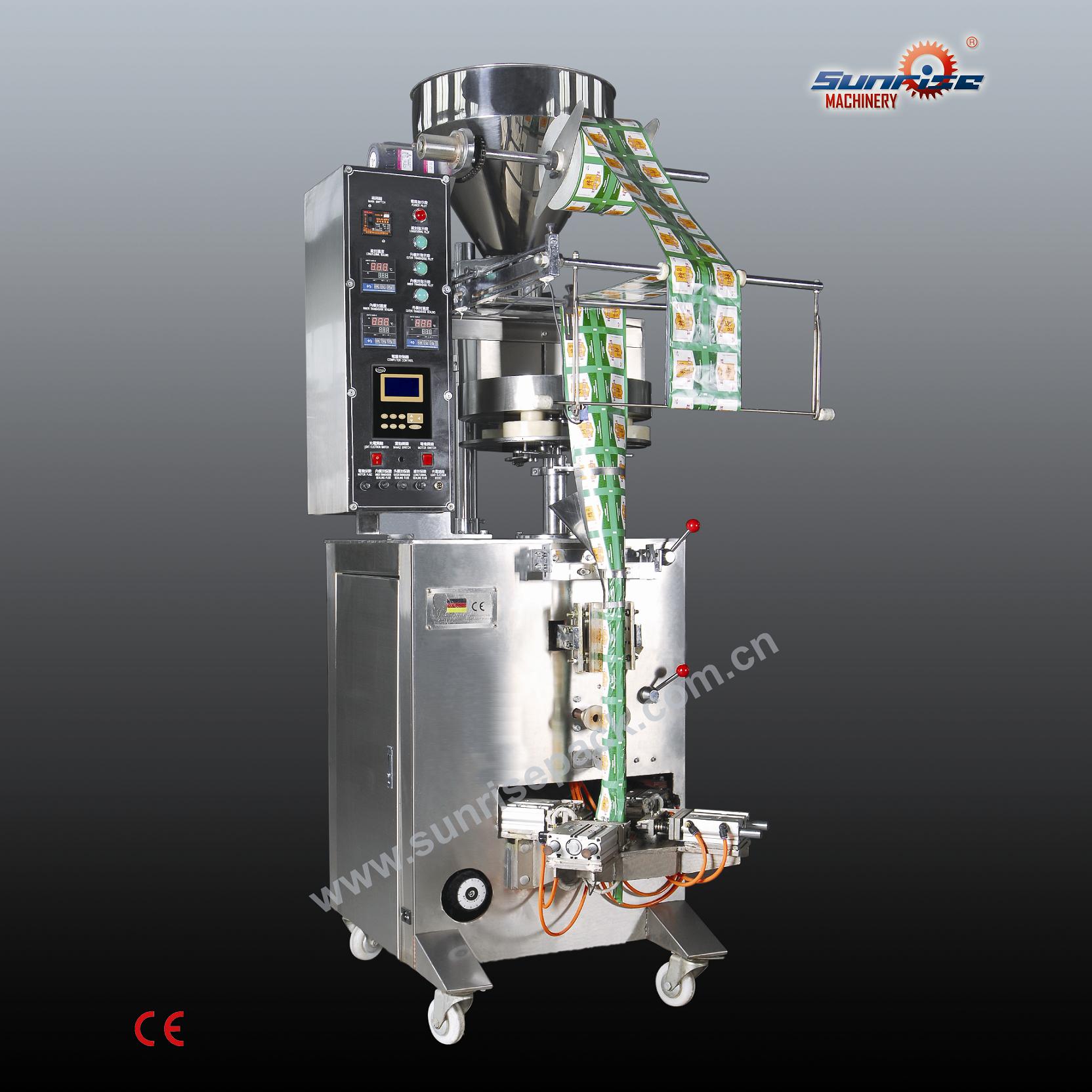

Model SR-FSK-40III

Application

Modernization of typical flat sachet type packaging has led the Manufacturer into designing machines

 that are more suited to ease of handling packaging With this in mind we have designed a vertical machine,

 which is capable of forming and sealing triangle pack. This machine is able to pack all types of regular and

irregular granular material as washing powder, sugar, coffee, tea, peanuts, oatmeal, snacks, etc.


Feature

Certificate:Obtained European Countries Quality Certificate of CE System



Bag making:The processes of filling, dosing, bag forming and well as sealing

could be done automatically.



Raw material:All SS304 cover meets international GMP standard



Control system:Japan Panasonic PLC& touch screen Employs PID,

temperature tolerance is controlled within ±2℃.



Adjustment:Bag size and filling range are adjustable



Photocell:Japan YMATAKE photocell system

Main technical parameters

Pouch size

(L)50-I50mm (W)50 -160mm

Capacity

40-60 bags/min

Filling range

20-100ml

Dimension(LxWxH)

1200mmx800mmx2000mm

Weight:

350 kg

Power

220V 50HZ, 1.7KW
