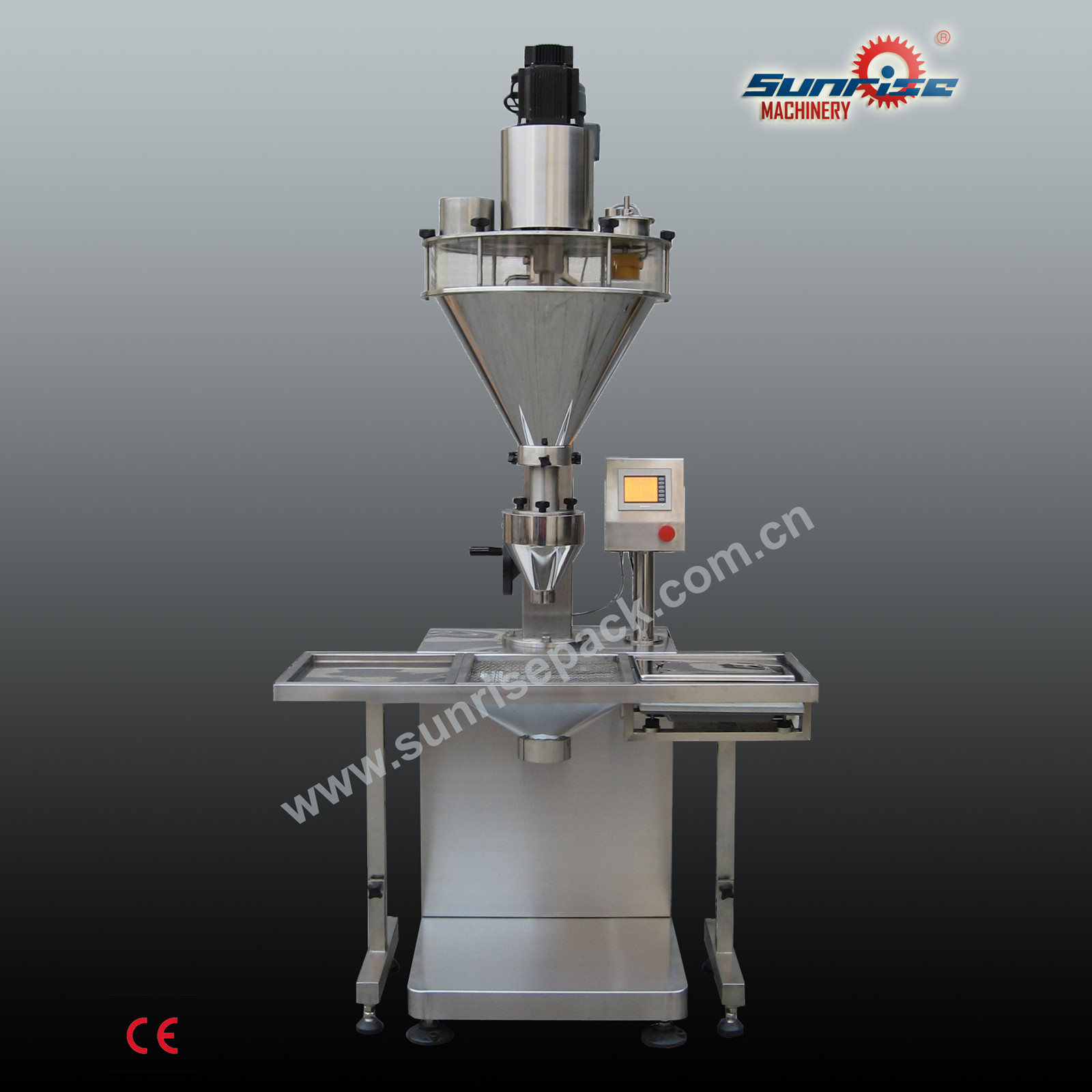

Model SR-1B-321

Application

This machine is suitable to pack powders and fine granules, like milk powder, solid drink, white sugar, dextrose, coffee powder, fodder, pharmaceuticals, agriculture pesticide, granular additive, dyestuff, etc.

Due to the special professional design, this type packing machine can do measuring and filling work.

Feature

1. Machine coverd stainless steel, meets GMP standard.

2. Adopts PLC + touch screen control, servo motor driven, easy to operate, high accurate measuring.

3. Weight feedback and proportion track gets rid of the shortage of variable packaged weight for various proportion of different materials.

4. The system can record all products' parameter formulas, max 10 sets parameters.

5. It is suitable for materials ranging from super fine powder to small granular via changing the auger accessories.

6. Machine hopper adopts quick joint device, convenient for daily clean.

7. Weighing system and hand wheel to adjust height of hopper.

Main technical parameters

                                    Model

                                   SR-1B-321

                             Packing weight

                                    10-5000 g

                           Packing accuracy

      ≤100g,≤±2%; 100 – 500g,≤±1%;≥500g,≤±0.5%

                               Filling speed

                               40-120 times/min

                               Power supply

                            3 P  380 V  50/60 HZ

                                Total power

                                      1.4 KW

                                Total weight

                                       260 kg

                          Dimension(L*W*H)

                       1140 mmx970 mmx2030 mm

                            Hopper volume

                          45L(Enlarged size 65L)

 Depending on your product property and filling volume
