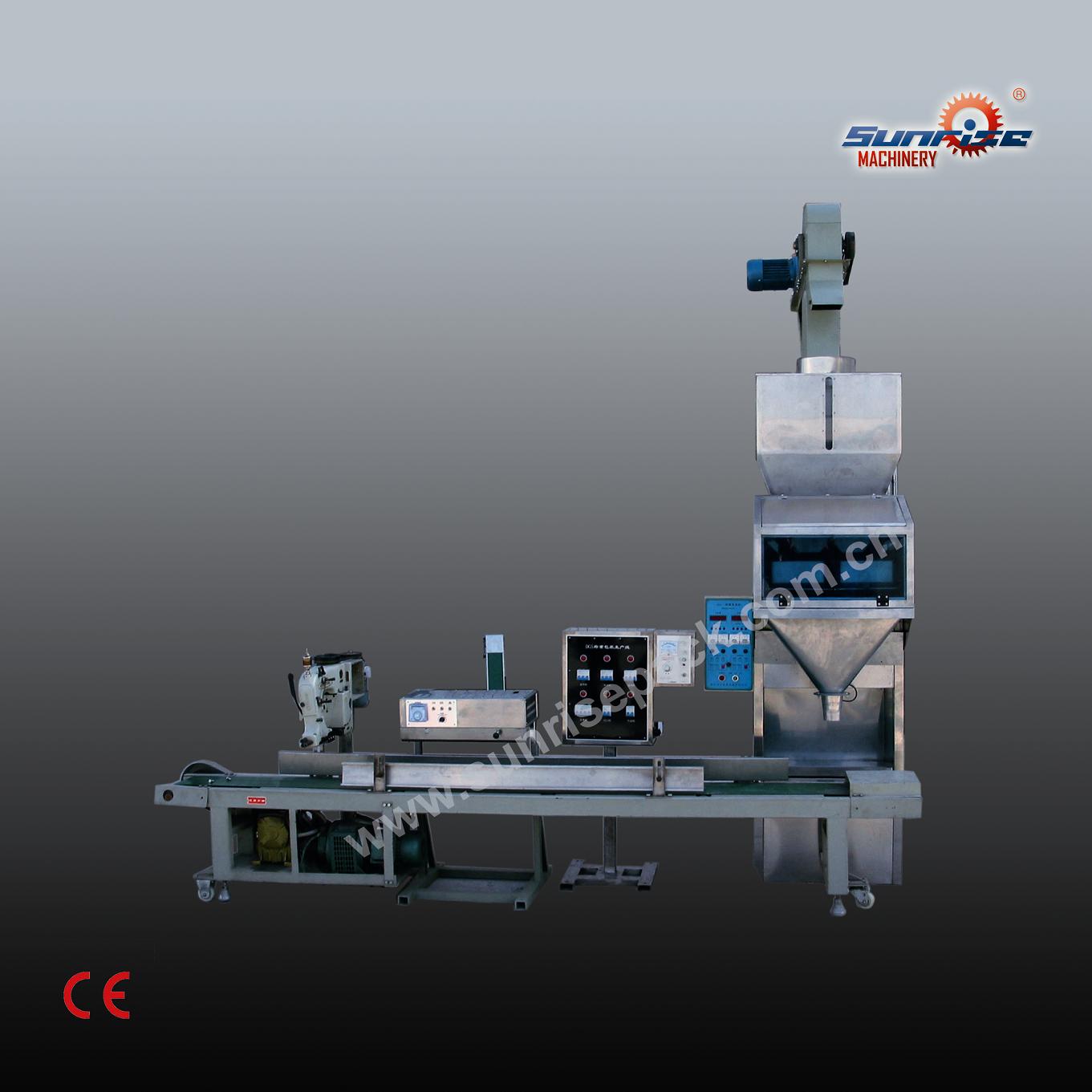

Model SR-BZDII

Application

It is suitable for packing grain or powder shape material such as washing powder,

salt, chemicals, sugar, seeds, rice etc.


Feature

Raw material :All stainless steel 304 cover meets international GMP standard.

Dosing system: Electronic scale

Control system: Micro-computer

Adjustment: Fill range is adjustable by computer

Optional device: Feeding machine, conveyor and sealing machine are as option


Main technical parameters

Model

Weight range

Tolerance

Weighing Capacity

     (bags/min)

Power Spply

(V/HZ)

Weight   (kg)

Dimension

 (LxWxH)

DGS-0.25

30-250

≤±2

22-15

220/50

100

620mm*790mm*1630mm

DGS-1

100-1000

≤±2

25-18

220/50

120

740mm*850mm*1810mm

DGS-1

100-2000

≤±1

35-13

220/50

200

870mm*880mm*2000mm

DGS-2

200-2000

≤±4

25-12

220/50

130

740mm*890mm*1850mm

DGS-6

500-6000

≤±8

20-11

220/50

170

800mm*1040mm*2200mm

DGS-10

2000-10000g

≤±10

18-8

220/50

190

890mm*1050mm*2230mm

Other Picture

Machine video
