Model SR-HR450A

Application

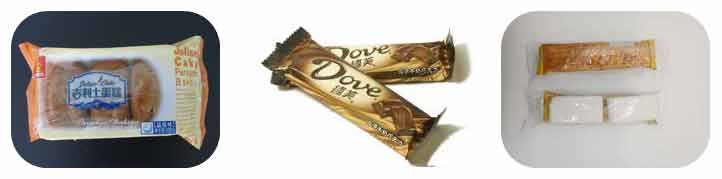

The machine is suitable for packing various kinds of objects like biscuits, pies, chocolates, bread, instant noodles, moon-cakes, soap, industrial parts, paper boxes, etc.

Packing materials: heat-sealable lamination, such as PET/VMPET/PE, PET/PE, etc.

Special design type for transporting film, big and easily broken products, adopts bottom reel transporting film-way.

Feature

1. Dual-frequency conversion control, bag length and filling range is adjustable during operation, quick and easy to save time and film.

2. Multi-function self-diagnosis system, convenient to fix according to tips on screen.

3. Adopts smart photocell for automatic tracking, which guarantees the pattern on the packing material is complete and beautiful.

4. Automatic stop when the cutter touches product. Film and product saving.

5. Simple drive system, working stable and reliable, low maintenance.

6.  2 meters long infeed conveyor covered with a high friction anti-slip belt and with a metallic joining strip. Fast assembly/removal and cleaning.

7. Equipped with different type of conveyor to adapt to different product natures.

Main technical parameters



                     Max. Width of film

                                                450 mm

                           Capacity

                                         30-150 bags/min

                    Film Roll Diameter

                                           Max. 320  mm

                         Bag Length

                                            130-450 mm

                         Bag Width

                                             50~180 mm

                     Product Height

                                             Max. 75 mm

                             Power

                                  220 V, 50/60 HZ, 2.8 Kw

                    Dimension(L*W*H)

                            4010 mm X 998 mm X 1530 mm

                             Weight

                                                 750 Kg

    Depending on product property and filling volume
