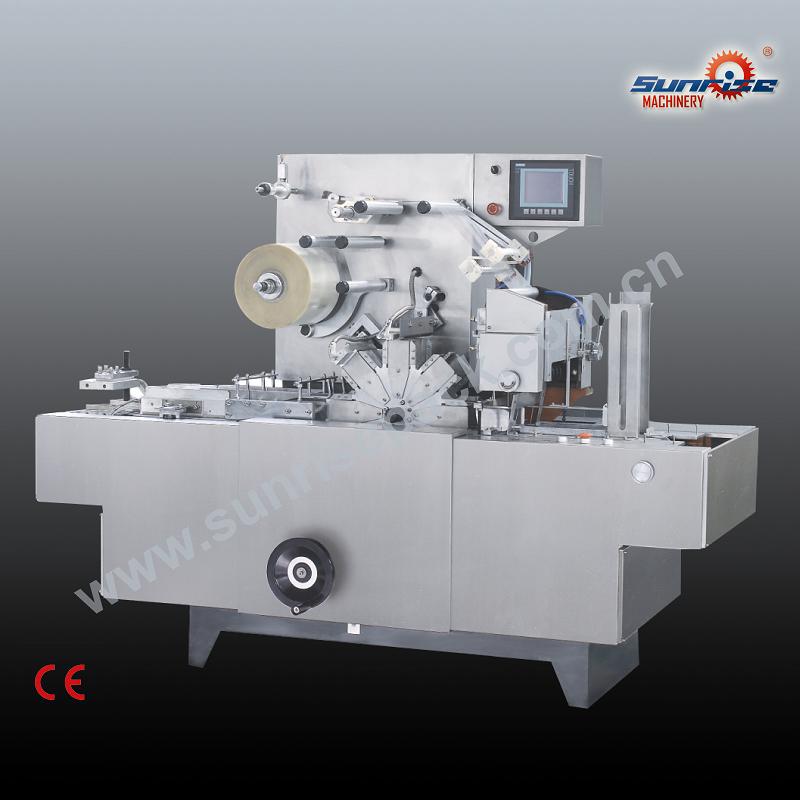

Model SR-BT-2000A/2000D

Application

This machine is to wrap cellophane on rectangular carton box with easy open tear tape, which is applicable for medicine, health food, cosmetics, tea, tobacco product, etc.

It can achieve moisture resistant, quick and easy to tear open, antiforgery.

Packing materials: double side heat sealable BOPP film.

Feature

1. Frequency motor control working speed, easy to operate.

2. The position of easy open tear tape and golden line are adjustable, eaay open tear tape and customized shapes are available.

3. The mould size is adjustable, one machine can be used for packing different size cartons.

4. Sealing tight, keep the product flavor and unique taste.

5. Equipped with no package material device as option, saving product and packing film.

6. It can work with carconing machine, as packing line.

Main technical parameters

SR-BT-2000A

                Capacity

                                  20-60 boxes/min

       Packing Dimension

       (40-200) mm*(30-140) mm*(10-50) mm(L*W*H)

                  Power

                                     220 V 50 Hz

            Motor Power

                                        0.75 kw

           Electric Heating

                                          4 kW

        Dimension (L*W*H)

                     2400 mm * 850 mm * 1600 mm

                Weight

                                          880 kgs


SR-BT-2000D

                 Capacity

                               10-25 boxes/min

             Packing Size

                        Max film width <340mm

                 Power

                        220 V 50 Hz single phase

           380 V 60 Hz three phase by special order

            Motor Power

                                     0.75 kw

          Electric Heating

                                      4 kW

       Dimension (L*W*H)

                 2300 mm * 1000 mm * 1600 mm

                Weight

                                    1000 kgs

    Depending on product property and filling volume

Other Picture



Machine video
